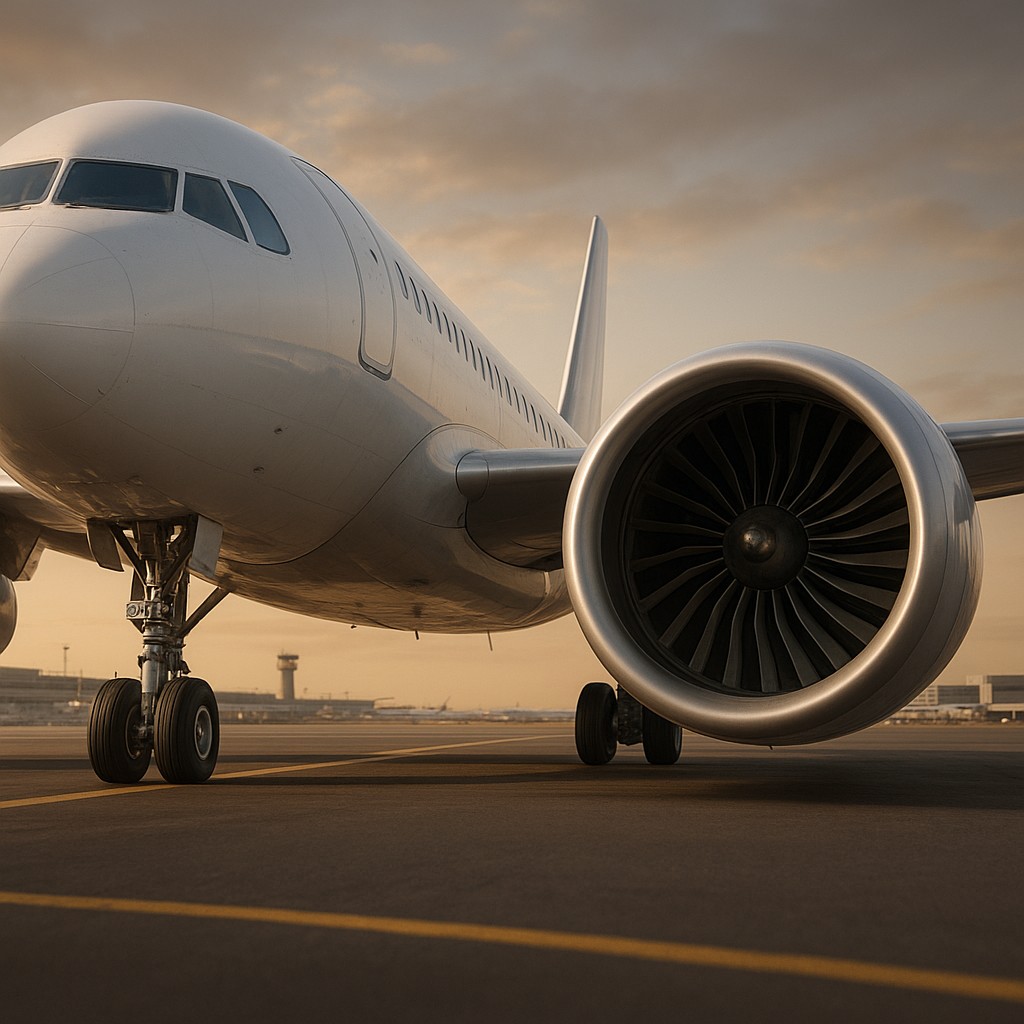

Imagine standing on the tarmac of a busy international airport, watching a massive jet taxi toward the runway. Your eyes naturally gravitate toward those giant silver cylinders hanging under the wings. These heavy shells, known as nacelles, are such a staple of modern travel that we rarely stop to ask why they exist. For decades, the aviation industry has followed one rule: if you want to fly 600 miles per hour at 30,000 feet, your engine blades must be tucked neatly inside a metal tube. This design has served us well, but it has reached a physical limit.
Engineers are now looking at those sleek casings and seeing them as a burden. The shells add weight and create wind resistance, or drag, that we can no longer afford. By stripping away the outer layer and letting the engine blades spin freely in the open air, a new generation of "open fan" engines aims to rewrite the rules of flight. This shift feels like a strange step back toward the era of propeller planes, yet the technology involved feels more like science fiction than the days of the Wright brothers. We are witnessing a high-stakes engineering gamble. The prize is a 20% reduction in fuel use, which would be the biggest single leap in aviation efficiency in nearly half a century.
To understand why removing a casing is such a big deal, we have to look at how a jet engine actually creates thrust. Most people assume all the power comes from the fiery explosion deep inside the engine core. While that fire provides the energy, most of the "push" for a modern airliner comes from a massive fan at the front that blows air around the outside of the core. This is known as the bypass ratio. In simple terms, the more air you can shove past the engine rather than through it, the more efficient the engine becomes. It is much better to move a huge amount of air slowly than a small amount of air very quickly.
The problem is that as we make the front fan bigger to move more air, the protective casing must grow too. A larger casing is not just heavier; it also creates more drag. Imagine trying to run through a swimming pool while holding a giant hula hoop out in front of you. The bigger the hoop, the more the water pushes back. Eventually, the weight and drag of a larger casing cancel out any gains from the bigger fan. This is the "casing ceiling" that has frustrated engineers for years. By throwing the shell away entirely, the fan can grow to a massive size without a weight penalty. This allows for a bypass ratio that is double or triple what today’s best engines can manage.
When you remove the ducting around a fan, you lose the ability to control exactly how the air enters and exits the blades. In a traditional jet engine, the casing acts like a specialized wind tunnel, straightening the air and ensuring it hits the blades at the perfect angle. Without that shell, the blades are exposed to the chaotic, swirling winds of the open sky.
This is where advanced physics comes in. To make an open fan work at high speeds, engineers use "unducted fans" with blades that look less like traditional propellers and more like curved scimitars. These blades are made from ultra-light carbon fiber and are managed by high-speed computers that change the blade angle, or pitch, hundreds of times per second.
One of the most fascinating parts of this design is the use of a second set of blades. In many prototypes, a front set of blades spins one way, while a second set of stationary or counter-rotating blades sits just behind them. These rear blades act as "stators," which are aerodynamic surfaces that catch the swirling air coming off the front fan and straighten it out. This process recovers energy that would otherwise be lost as turbulent wake, turning it back into forward thrust. It is a mechanical ballet performed at 800 feet per second. The goal is to make the air behave as if it were still trapped inside a pipe, even though it is perfectly free.
| Feature | Low Bypass Turbofan (Old) | High Bypass Turbofan (Current) | Open Fan Architecture (Future) |
|---|---|---|---|
| Bypass Ratio | Low (approx. 2:1) | High (approx. 10:1) | Ultra-High (up to 70:1) |
| Weight | Heavy for its thrust | Very heavy due to casing | Significant weight reduction |
| Fuel Efficiency | Poor | Standard | 20% improvement |
| Primary Noise Control | Internal baffles | Thick acoustic casing | Advanced blade shaping |
| Optimal Speed | Very high | High | High (near-sonic) |
If the open fan is so much better for fuel, why haven't we been using it since the 1970s? The answer is noise. Those heavy metal casings serve a second, vital purpose: they act as soundproofing. A jet engine is essentially a continuous explosion next to a giant high-speed blender. The casing is lined with acoustic tiles that soak up the screaming whine of the fan blades.
When you remove that shell, the sound waves radiate in every direction. Early tests of this technology in the 1980s produced a sound so piercing that it was often compared to a giant flying buzzsaw. No airline wanted a plane that would cause a riot every time it took off near a neighborhood.
Modern engineering has finally found a way to quiet the beast through supercomputer simulations. By modeling how air molecules collide with the tips of the blades, designers found that noise isn't just about the spinning; it is about the "vortex shedding," or turbulent air, at the blade tips. By subtly twisting the blade shapes and using exotic materials that dampen vibration, engineers can now synchronize the air pressure waves so they partially cancel each other out. They are effectively designing the engine to be its own noise-canceling headphone. While an open fan will likely never be as whisper-quiet as a boxed engine, the goal is to meet the same strict noise regulations that modern planes follow today.
Another common concern is that open fan engines are inherently more dangerous. People look at those exposed, spinning blades and imagine a bird strike turning into a disaster. In a traditional engine, the casing is "containment grade." This means if a blade breaks off, the casing is strong enough to catch it like a bulletproof vest, preventing shrapnel from piercing the plane’s fuel tanks.
Without a casing, where does that energy go? This is perhaps the greatest hurdle of the project. The solution isn't just about the engine; it is about where the engine is placed. You won't see open fans simply swapped onto existing wings. Instead, future planes may be designed with "pylon shielding," or the engines might be moved to the tail. This placement uses the body of the plane itself as a shield.
Additionally, the blades are designed to be "frangible." This means that if they hit an object or fail, they are engineered to shatter into tiny, lightweight dust instead of large, lethal chunks of metal. It is a safety philosophy based on controlled disintegration rather than brute-force containment.
The push for open fan technology isn't just about saving airlines money. It is a frantic race for the aviation industry to justify its existence in a carbon-neutral world. Aviation is hard to clean up because batteries are too heavy for long flights and hydrogen fuel requires massive changes to airports. Improving the engine itself is the "low-hanging fruit" because it works with the liquid fuels we already have, including Sustainable Aviation Fuel (SAF).
By cutting fuel burn by 20%, an open fan engine makes green fuels more practical and affordable. it is a bridge technology that allows the industry to slash its carbon footprint now while we wait for electric or hydrogen planes to develop over the coming decades. This isn't just a change in parts; it is a shift in design philosophy that prioritizes the planet over the traditional "jet look."
The next time you see a white vapor trail across the sky, consider that the silhouette of flight is about to change forever. We are moving away from the brute force of encased power and toward a more elegant, efficient interaction with the atmosphere. The open fan represents a beautiful irony: sometimes, to move into the future, we have to look back at the designs we discarded and reinvent them with modern wisdom. It is a testament to human ingenuity that a "step back" to a propeller-like design can become a giant leap forward for the world.
